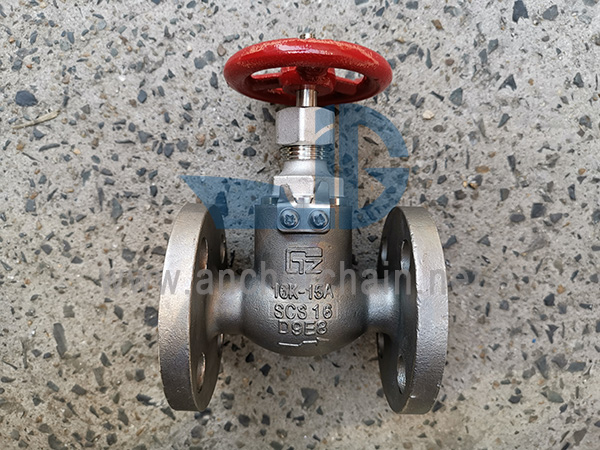

JIS F 7409 16K SCS16 roestvrij staal vastgeschroefde terugslagklep Marine vastgeschroefde terugslagklep wordt ook wel marine SDNR-klep, marine stop terugslagklep, marine globe non-reuturn klep, marine globe terugslagklep .. etc. genoemd. Functie: open / sluit de pijpsysteem en voorkom terugstroming van het medium. Ontwerpstandaard: JIS F7409-1996
Flensmaat volgens JIS B2220-16K
Hoofd materiaal:
1-Body: roestvrij staal(SCS16)/SUS316L
2-schijf: roestvrij staal¼ˆSCS16¼‰/SUS316L
3-stam: roestvrij staal(SCS16)/SUS316L
4-Bonnet: roestvrij staal(SCS16)/SUS316L
5-handwiel: gietijzer (FC200)
IMPA-code | Maat | L | D | C | Aantal boutgat | h | t | H | D2 |
751071 | 15 | 110 | 95 | 70 | 4 | 15 | 12 | 130 | 80 |
751072 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 140 | 100 |
751073 | 25 | 130 | 125 | 90 | 4 | 19 | 14 | 160 | 125 |
751074 | 32 | 160 | 135 | 100 | 4 | 19 | 16 | 170 | 125 |
751075 | 40 | 180 | 140 | 105 | 4 | 19 | 16 | 190 | 140 |
